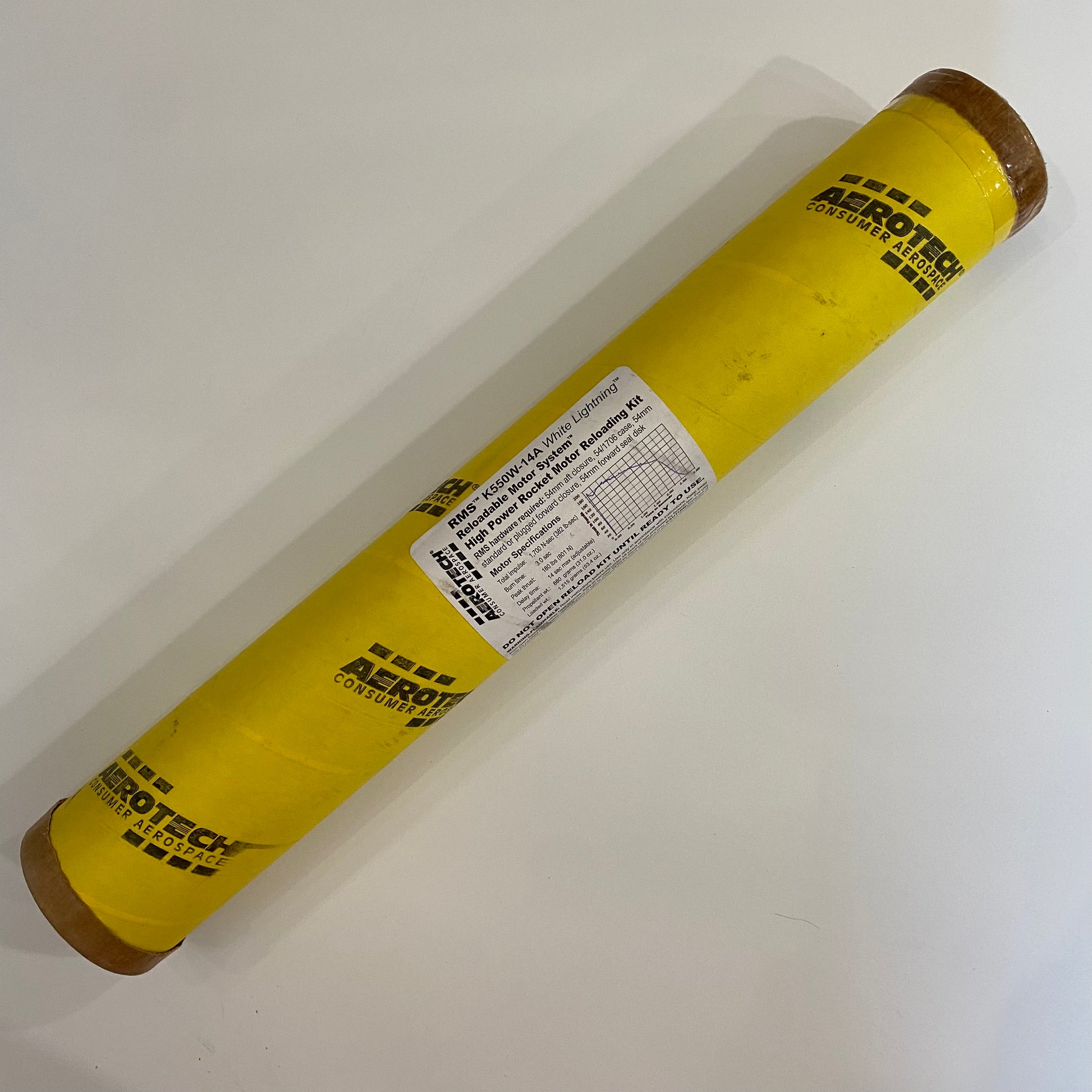

Aerotech K550W-14A RMS-54/1706 Motor Reload Kit (1 Pack)

Aerotech K550W-14A RMS-54/1706 Motor Reload Kit (1 Pack)

Out of stock

Regular price $167.99 USD
Regular price Sale price $167.99 USD
Sale Sold out

The AeroTech Reloadable Motor System RMS is an aluminum-cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/1706 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts.

This motor requires installing a forward seal disc (54FSD) during assembly. Important: High-Power RMS reload kits are not compatible with Mid-Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), Not Included. The 54mm Delay Drilling Tool (54RDDT) is not yet available through this website.

This RMS motor reload utilizes RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a gorgeous bright white flame with lots of dense white smoke and a throaty roar at lift-off.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators.

The sale of this high-power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will only be available through local delivery and can not be shipped from

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR), and the Canadian Association of Rocketry (CAR).

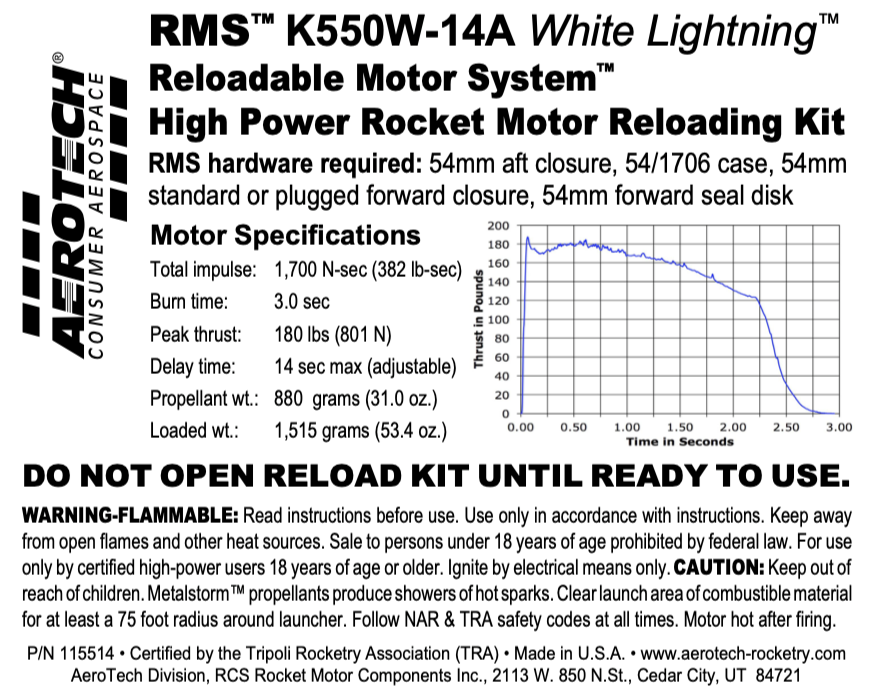

  • Motor Diameter: 2.125 inches (54mm)
  • Casing Length: 17.20 inches (437mm)
  • Hardware Required: RMS-54/1706
  • Total Impulse: 1539.1 N-sec
  • Average Thrust: 396.8 newtons
  • Peak Thrust: 655.3 N-sec
  • Thrust Duration: 3.9 seconds
  • Delay Time: adjustable up to 14 seconds
  • Propellant Weight: 889 grams
  • Motor Weight: 1487 grams

Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at or OpenRocket Simulator available at
