SDR 3D Printed AV Bay Sled - for 3.1" Diameter Rockets

SDR 3D Printed AV Bay Sled - for 3.1" Diameter Rockets

Out of stock

Regular price $27.00 USD
Regular price Sale price $27.00 USD
Sale Sold out

We are pleased to bring you products from SkyDancer Rocketry (SDR)!

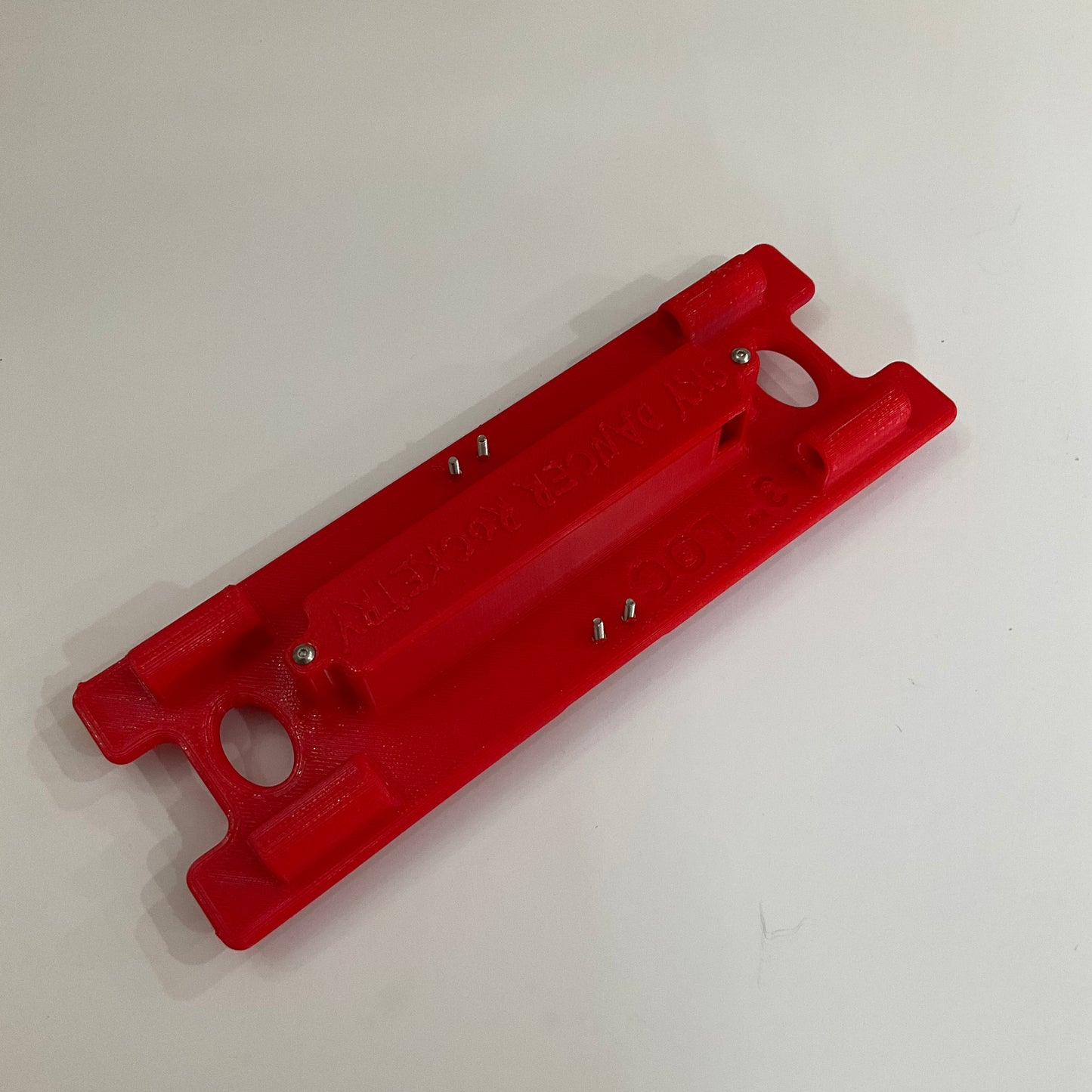

This is an Electronics Bay / Avionics Bay sled for LOC and similar 2.6" Rocket kits! The sled is designed to fit within the confinements of the space provided internally of a 6" long coupler for 2.56" rocket kits.

This sled will accommodate 2 FingerTech Mini Power Switches, 2  300mah 2s LiPo batteries, and two Altimeter Carriers. Wiring, solder, and other tools are not included.

This sled has screws designed for holding multiple carriers for the following Altimeters.

Eggtimer Quantum
Eggtimer Quark
MissileWorks RRC2+ / RRC2L
MissileWorks RRC3
PerfectFlight StratoLoggerCF

These are also made to use the famed robotics FingerTech Mini Power Switch. (Not Included)

Please Note:
The switch mounts will only fit the FingerTech Mini Switches. You can purchase those from Chris' Rocket Supply here!

You also have a choice of getting Charge Wells (depending on stock availability) for the bulkheads which are also 3D printed.  Please see the choices for each sled you're purchasing.

Bulkhead adjustment will be needed for these to mount with LOC and other brands. We recommend using epoxy to fill the holes on your bulkheads that aren't used and drilling new holes as needed to accommodate your all-thread. The all-thread mounts may also need to be drilled out carefully to fit.

The battery mount is made to mount any LiPo battery that is smaller than 47x17x15mm.  They were designed around the 300mah 2s batteries from Turnigy Manotech, Tattu, or Lumenier.  There is no 9V design currently for these products.

One More Note:
The color of the sleds, carriers, and charge wells may vary and are not yet available by choice.  The screws provided will require a HEX 1.5mm driver.  The Fingertech Switches will require a HEX 3/32 driver.

SDR Avionics Bay components and electronics sleds are designed and built by Terry Dancer, an actual rocketeer. Terry and many others have used these components on numerous occasions and flights with great success. These flights have tested the reliability, strength, and function in flights close to Mach 3 and altitudes of 32k ft AGL. Whether your flight is low and slow or fast and high, the SDR sleds have something for anyone's needs.

The sleds are made of PLA+ filament.  They come with different options for altimeters by an included carrier which you can choose for several companies, such as Egg Timer and Missile Works.  They also include 3D-printed charge wells, so you can put them on your bulkhead for deployment.  Please see the choices available for each one of the sleds listed.

All SDR products carry a lifetime warranty against breakage during normal use, this does not include damage from crashes or misuse including melting from improper storage. SDR will replace any item that is damaged at its discretion! For warranty claims, please contact us by emailing info@modelrocketguy.com

SkyDancer Rocketry

SKU:SDRSLD310
